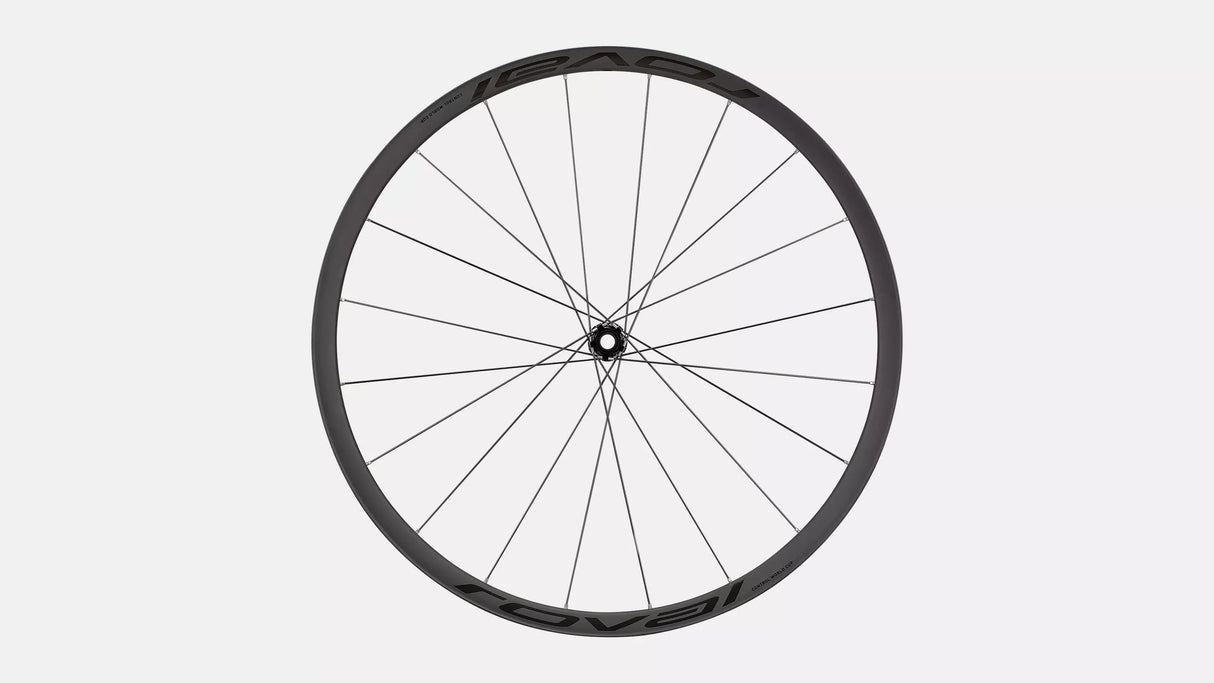

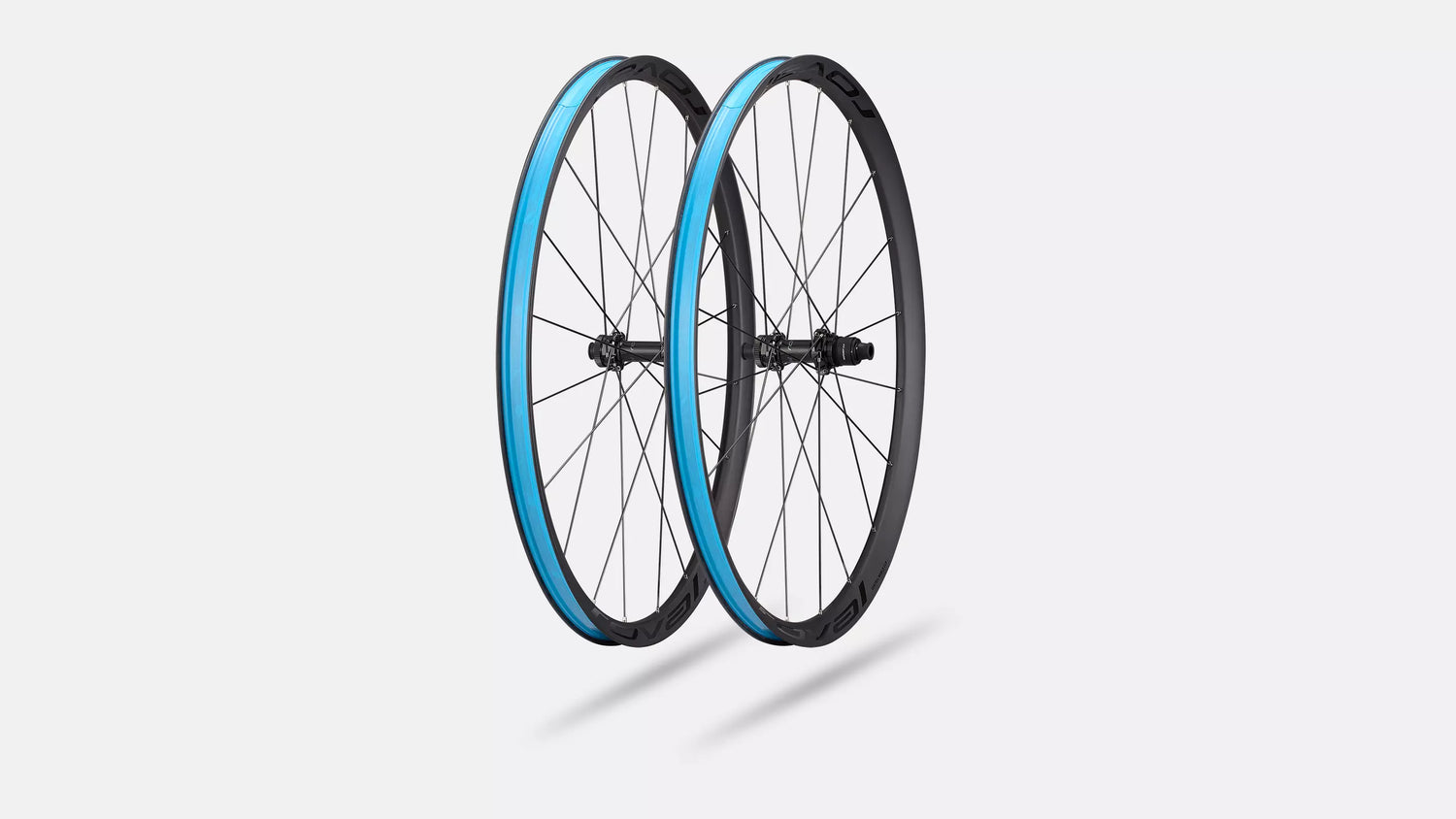

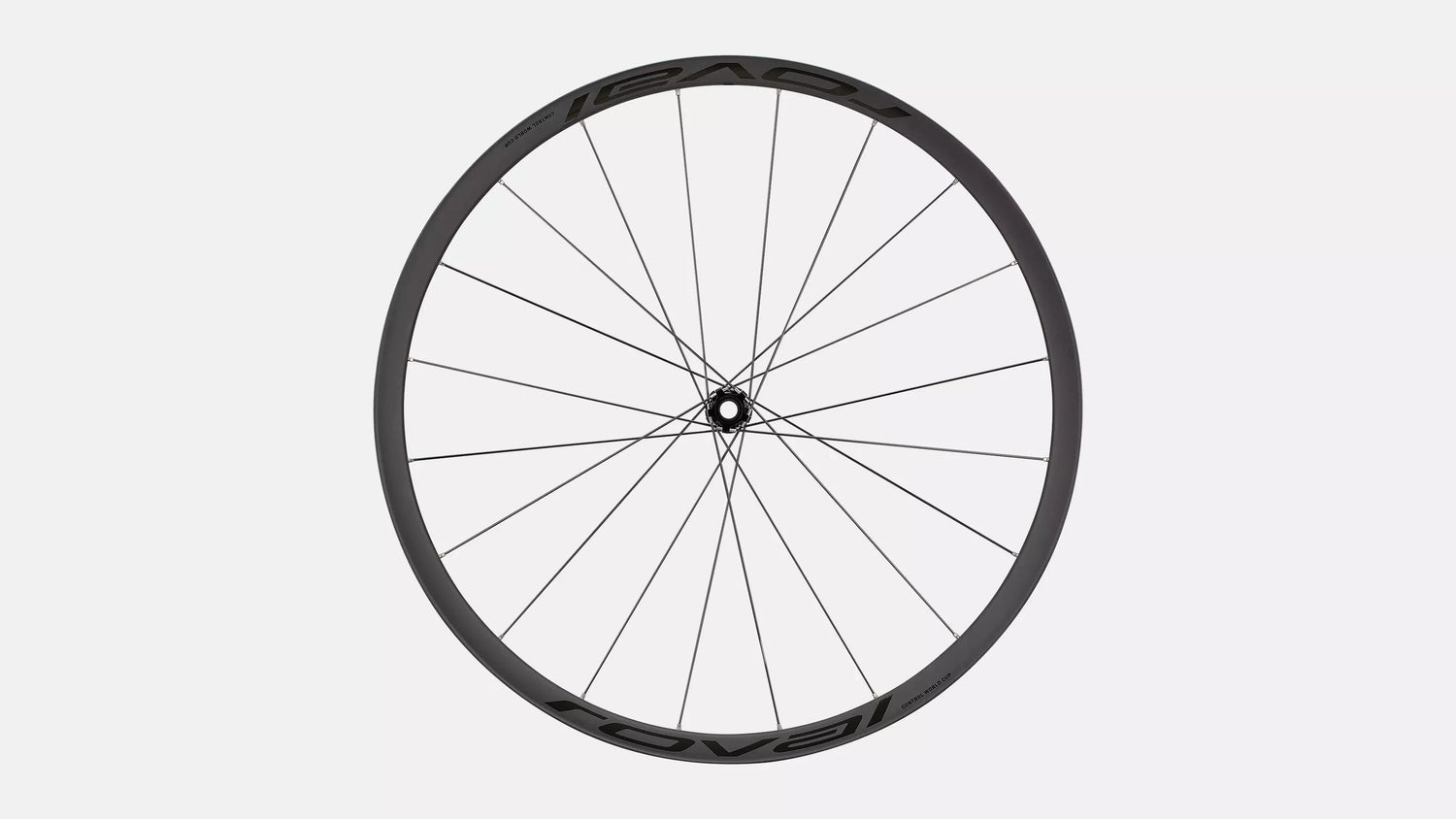

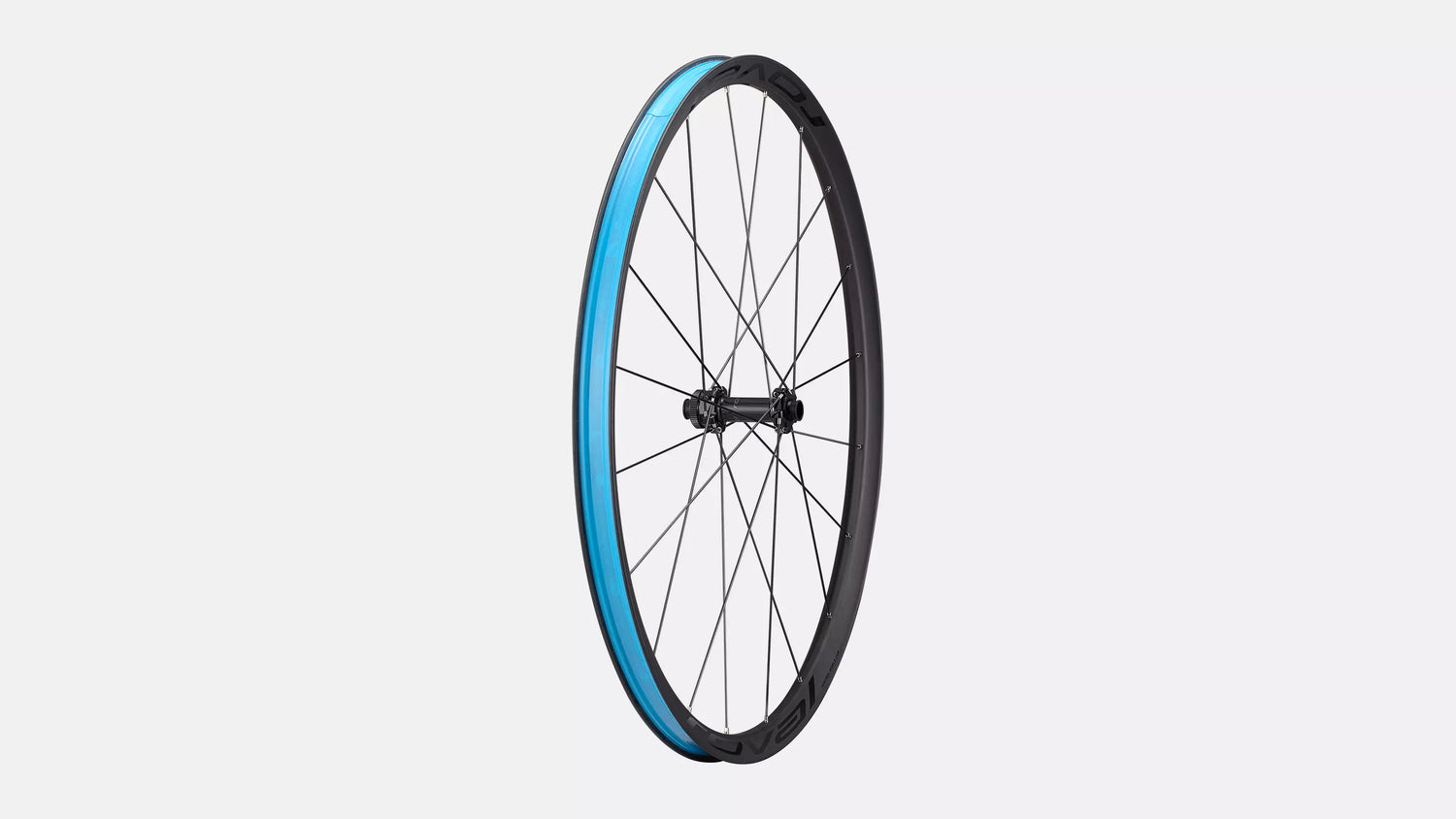

2027 Roval Control World Cup Wheelset
Description
Description
The Fastest XC Wheels on the Planet. Period.
The All-New Roval Control World Cup
The Roval Control World Cup wheelset is the fastest in the world, and at just 998 grams, they’re also the lightest. Every detail was obsessively engineered with input from top pros to deliver unmatched performance at the highest level. Beyond its featherweight design, it boasts leading flat resistance, durability, and ride quality, proven by our Factory Team. The Roval Control World Cup isn’t just a wheelset, it’s a new benchmark in XC racing.
-
At a Glance
Use
XC Racing & Riding
Weight
998g (w/ valves and rim tape)
Recommended Tires
Fast Trak & Air Trak
Internal Width
28.5mm
Hub
Roval LF DT180 EXP
Spokes
Roval Carbon w/ Ti Ends
Technical Specifications
Rims
Front Rim
Control World Cup Carbon 29" (WC042)
Front Rim Dimensions
Depth: 26mm, External Width: 36.5mm, Internal Width: 28.5mm, Bead Hook Width: 4mm
Rear Rim
Control World Cup Carbon 29" (WC042)
Rear Rim Dimensions
Depth: 26mm, External Width: 36.5mm, Internal Width: 28.5mm, Bead Hook Width: 4mm
Rim Construction
Carbon Clincher Mini Hooked
Wheel Size / ETRTO
29"/ 622 mm
Hole Count
20H
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (Centerlock)
Valve Stem Length
Roval Tubeless Valve, Alloy 34mm
Hubs

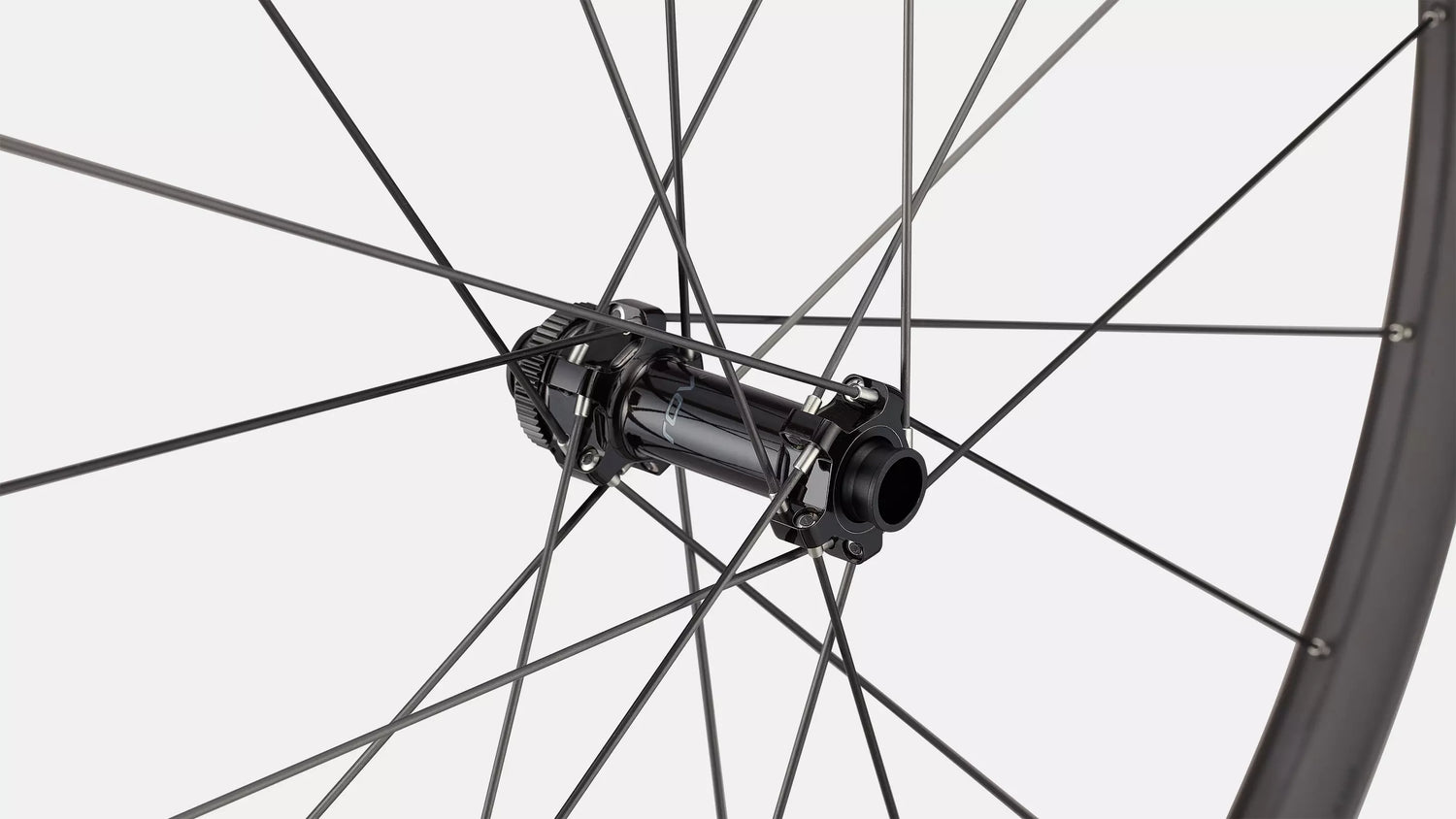

Front Hub
Roval Low Flange Mountain Hub, Center Lock, 15x110mm, 19mm OD End Caps Installed (LFM23)
Rear Hub
Roval Low Flange Mountain Hub , Center Lock, 12x148mm (LFM24)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD
Spokes & Nipples
Front Spokes
Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straigh-Pull, 20qty
Rear Spokes
Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straigh-Pull, 20qty
Front Lacing Pattern
Two-cross/Two-cross (1:1)
Rear Lacing Pattern
Two-cross/Two-cross (1:1)
Nipples
VONOA Internal Carbon Spoke Nipple, Alloy, 8.1mm
Tire Info
Approved Tire Widths
1.9-2.6
Max Pressure
Tubeless 40psi , Tubed 40psi
Tire Type
Tubeless, Tube Type Clincher
Tubeless Tape Width
30mm
Design Tire
Specialized Air Trak 29x2.35 Flex Lite
Weight
Front Weight
452g (with valves and tape)
Rear Weight
546g (with valves and tape)
Wheelset Weight
998g (with valves and tape)
General
E-bike Approved
No
Weight Limit
275 lbs. / 125 kg.
Assembly Method
Hand Built
Warranty
Limited Lifetime Warranty
