Specialized Roval Control Riser Cockpit Carbon One Piece Handle Bar 780mm + 25x40mm
Couldn't load pickup availability
Description
Description
Control Starts Here

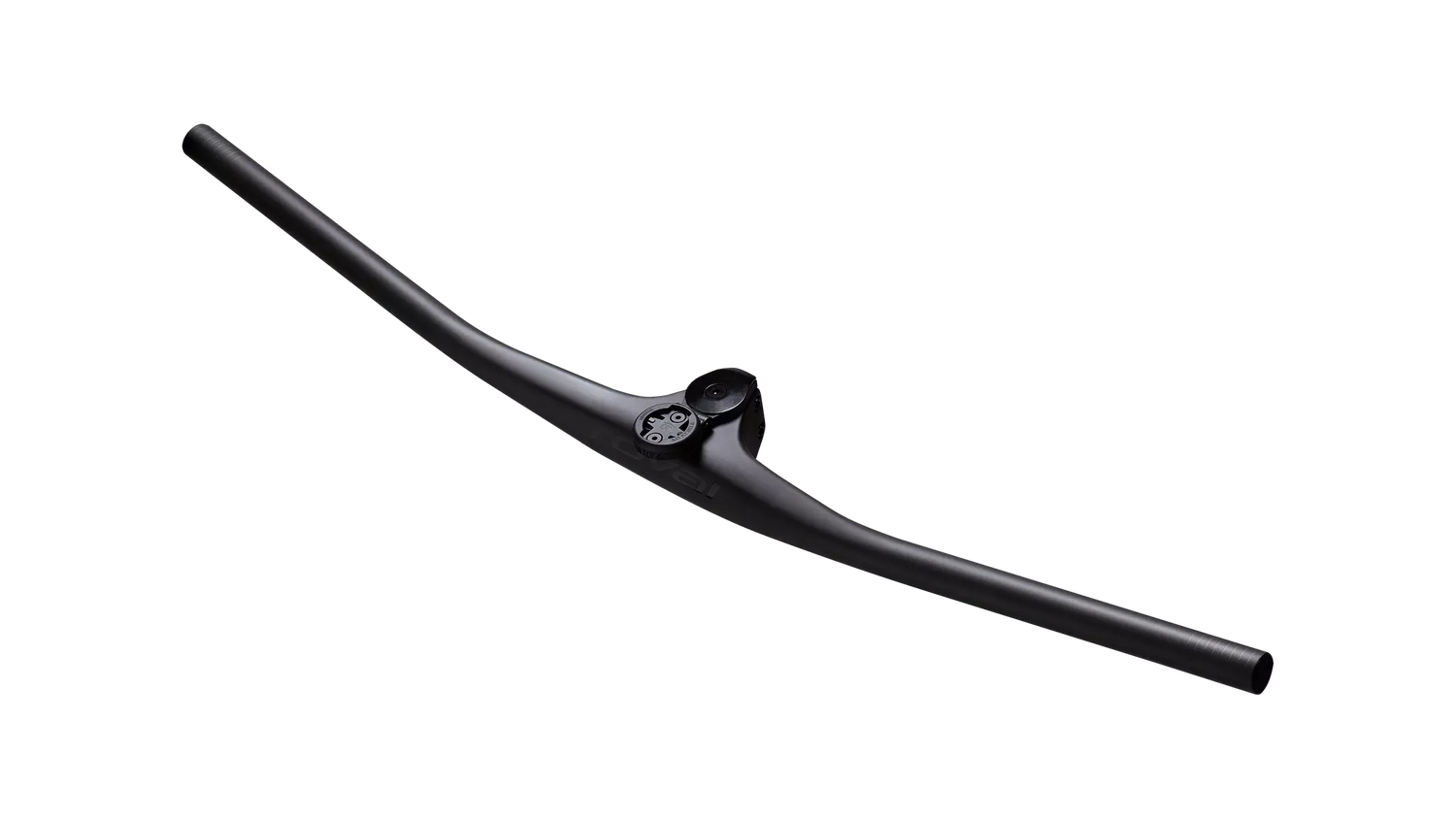

The Roval Control Riser Cockpit delivers lightweight precision and tuned compliance for modern XC and trail riders. Made from premium high‑modulus carbon and weighing just 250g, it features a 25mm rise*, 780mm width, 2° up and 8° back sweep, into a sleek, integrated 40, 50, & 60mm stem options. With a 275‑lb weight limit, cut‑to‑fit width, titanium hardware, and lifetime warranty, it's built for fast, confident trail control.
* measured from a 65.5° head angle
Technical Specifications
General
Material
Premium High Modulus Carbon Fiber
Weight
250g (in 50mm x 780mm width)
Use
XC, MTB Trail
Weight Limit
275lbs / 125kg
Warranty
Limited Lifetime Warranty
Bar
Width - End to End
780mm (includes cut marks to customize for rider)
Rise
+25mm (based on 65.5 degree Head Tube Angle)
Up Sweep
2 Degrees
Back Sweep
8 Degrees
Stem
Stem Length
40mm, 50mm, 60mm
Stem Stack Height
42mm
Steer Tube Bolts
Titanium
Steer Tube Bolt Torque
5.0 Nm
Steerer Diameter
1 1/8"
**Top Cap Computer Mount Not Included**
